R&D / MATERIALS RESEARCH

From polymer research to microsphere design.

PLLA and PLGA synthesis, analysis, extrusion, molding and physical testing form the research foundation for PLLA microsphere development.

Explore the research

MATERIALS RESEARCH

Research the material. Experiment with its form.

GLOONE’s materials work began with polymer synthesis, analysis, extrusion, injection molding and physical testing. That experience informs PLLA microspheres and material development for fillers and skin boosters.

Repeating unitsPLGA

Simplified structural diagram. It does not specify copolymer sequence, composition ratio or resin grade.

01 / PLLA · PLGA / SYNTHESIS & ANALYSIS

Synthesize. Then understand the structure.

PLGA synthesis research led to investigations of chemical structure, molecular weight and thermal behavior. In-house samples, external analytical testing and collaborative publications helped connect material properties with processing.

FT-IR · NMR — chemical structure
GPC — molecular weight and distribution
DSC — thermal characteristics

Research basis

2013 PLA/PLGA analytical records; 2014 synthesis and physical-properties conference paper; 2015 PLGA publication

GLOONE monofilament — GLOONE / MONOFILAMENT

02 / EXTRUSION · DRAWING · INJECTION MOLDING

One polymer. Different processing histories.

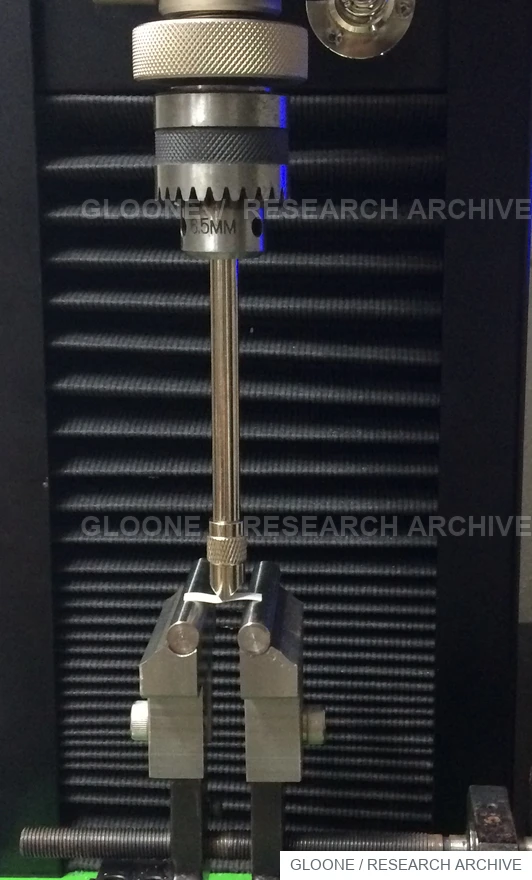

PLLA filaments were extruded and studied through drawing, heat treatment and tensile testing. PLGA was injection-molded into plate and screw specimens for forming and mechanical evaluation, connecting material, tooling and process conditions.

PLLA extrusion, drawing and tensile tests
PLGA injection specimens and bending evaluation
Model-specific tooling and prototype reviews

Research basis

2014/2017 PLLA tensile records; 2015 PLLA/PDO suture conference paper; 2020/2021 development records

MEASURE / OBSERVE / COMPARE

01FT-IR · NMR

02GPC · DSC

03Tensile · Mass · pH

PLLA · PLGA / RESEARCH

03 / PHYSICAL PROPERTIES · HYDROLYSIS

Change takes more than one measurement.

Membrane and filament studies examined changes in mass, pH, surface and mechanical properties over time. Composition, geometry and test conditions are necessary context for interpreting differences.

Specimen — composition, molecular weight, form, processing
Conditions — temperature, medium, observation points
Endpoints — tensile properties, mass, pH, surface

Research basis

2015/2016 collaborative membrane publications and filament test records

04 / PLLA MICROSPHERES / DEVELOPMENT SAMPLES

Make a particle. Observe it. Refine it.

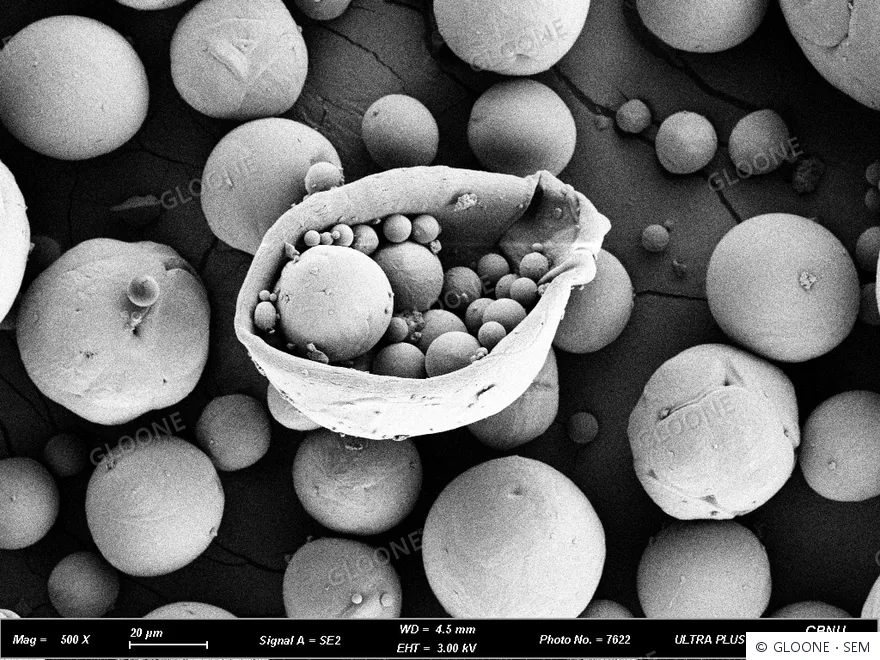

Microsphere development for filler and skin-booster materials involves examining shape and surface, particle size and supply format. SEM images of a vitamin C-containing PLLA sample record an investigation of its internal structure.

Observe particle shape and surface
Review target size, classification and supply format
Examine vitamin C-containing samples

Research basis

2021 double-encapsulation SEM and subsequent microsphere development and supply records

Synthesis research is distinct from current feedstock sourcing. Current PLLA microsphere production uses imported polymer feedstock, with particle manufacturing and processing developed for the intended purpose.

GLOONE / RESEARCH ARCHIVE

Years of research. Records that remain.

What was made, and what was examined. Project reports and test records trace the development of GLOONE’s research.

2013–2014

Design begins with the polymer.

S2105408

Research topic: PLA/PLGA synthesis and prototype design
Work recorded: The research combined FT-IR and DSC analysis of synthesized samples, drawing-to-model checks and geometric prototypes.
Scope of the record: Final report for project S2105408, 2013–2014. ABS shape prototypes and polymer research specimens belong to separate development stages.

ACADEMIC RECOGNITION

Recognition through research.

Conference awards verified against certificates in our archive.

2013.06.26

Best Paper Award

Physical properties of PLGA plates and screws with injection molding

1st International Conference on Advanced Green and Smart Technology
JongSoon Park · SoonKook KangRequest documents

2014.11.28

Outstanding Paper Award

Biodegradation of copolymerized PLGA membranes

Korea Academia-Industrial Cooperation Society, Autumn Conference
Yuying Xie · JongSoon Park · SoonKook KangRequest documents

PUBLICATIONS

Research in print.

Selected publications co-authored by Jong-Soon Park with a GLOONE affiliation. Each concerns a specific research sample and objective.

Research findings apply to the samples and conditions in each publication. They do not directly establish current product performance or in-body degradation periods.

GLOONE / RESEARCH & IP

From material to process. A record of research.

GLOONE research records spanning material structures, product configurations and manufacturing processes.

Granted research records

Grant publication

N-아세틸글루코사민 유도체를 유효성분으로 함유하는 주입용 필러 조성물

Injectable filler composition

KR102629903B1

Application

KR1020190170221A

From polymer research to microsphere design.

Synthesize. Then understand the structure.

One polymer. Different processing histories.

Change takes more than one measurement.

Make a particle. Observe it. Refine it.

Design begins with the polymer.

PRP in our research history.

Measure how filaments behave.

Research reaches the surface.

Best Paper Award

Outstanding Paper Award

Properties and biodegradability of PLGA membranes synthesized from lactic acid and glycolic acid

Degradation rate and pH changes during PLGA membrane biodegradation

Effect of molecular weight on biodegradable polymer membranes

Optimization of the PLA microparticle production process

Trends in the use of biomolecules as cosmetic ingredients

Granted research records

N-아세틸글루코사민 유도체를 유효성분으로 함유하는 주입용 필러 조성물

과열증기를 이용한 항균 항바이러스 기능을 가진 멜트블로운 부직포 필터 제조장치

항응고제 자동 주입형 혈소판 농축세트

주사약 분사기 및 상기 분사기를 포함하는 주사약 분사장치

미세기공을 갖는 생체흡수성 의료용 실을 제조하는 방법

비대칭구조의 보습 마스크팩

생분해성 고분자와 황토가 결합되어 탄력성이 증진된 기능성 마스크팩 및 그의 제조방법

생체적합성 소재를 활용한 인공혈관 및 그의 제조방법

온도에 따른 차광성 및 단열성을 보유한 필름

Published applications

생체흡수성 약물 담지 핀 제조방법

혈소판 농축 방법 및 이를 위한 농축기구

골이식재가 부가된 흡수성 플러그 및 그 제조방법

골이식재가 부가된 흡수성 플러그를 제조하는 방법

접착제의 제조방법

다중코어 상변화 물질 함유 축열 섬유

이종 약제를 혼합시켜 배출하는 주사기

창상피복재 제조방법

여성청결제 제조방법 및 상기 제조방법으로 제조된 여성청결제

Designing internal structure from real observation.

PLLA outer shell

Vitamin C particles inside

Bring us your research question.
